Forged Dropouts







RE1020N. Angle 74°.
With Adjuster Hole


1161 Horizontal Cast Dropouts. 71°
Stainless Steel Only







1187. Solid. 62°
1188. Solid. 69°


506. Horizontal Dropouts.
65°. No Hanger.
No adjuster Holes


RE1185N. Angle 65°.






Rit.Forge.O1. Ritchey Forged.
Single eye. Offset - 62°.
Available without eye in 53 or 62°.
 		 Rit.Forge.153. Ritchey Forged.
Single eye - 53 Extra strong.
Rit.Forge.74. Ritchey Forged., No eye. 74°.
Light Surface Rust. Limited availability in this angle










FE1510N 9mm Slot




 		 FE1520N









 		    FE1540
 With Safety Tabs





Tange Fronts
Eyelet M6

 		 DR2080 CNC Machined
Straight




Plate Dropouts









RE1410N Track Ends. Angle 75°.
Campagnolo Pattern
RE1410S Above in Stainless Steel
RE1410F Stainless Steel Solder on Faces for RE1410N or RE1410S

RE1420 Track Ends
RE1420F Stainless Steel Solder on Faces for RE1420


 		 RE1420N. Track Ends.
Bolt on Stainless Faces

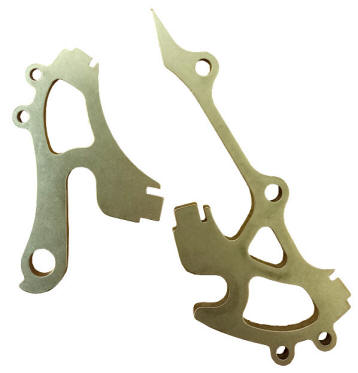

Stainless Plate Dropouts









959N -  17/4 Stainless Steel.






954N Vertical Plate Dropout.
No eyes. Stainless Steel. 68 degree
With Stainless Faces





 		 955N Vertical Plate Dropout.
Double Eyelet. Stainless Steel. 68 degree
With Stainless Faces






959 -  Stainless Steel



CNC Machined Dropouts


Q2 Dropouts with raised face. 70 degree.
17/4 Extra Strong Stainless Steel.





















DR2091 Syntace Dropouts 12mm, 25.4mm diameter x 25mm flange

DR2090. As above but with 20.5mm flange

Additional Part Options:

B4090 Hanger for above Shimano DM Mountain
B4093 Hanger for above M10 x 1, Syntace X-12
I
Inserts for tuning wheel alignment:

B4092 -    0mm
B4095 - 0.5mm
B4097 - 1.0mm

Axles for Above:

SK4075 - Syntace Axle 142xM12 x 1.0mm
SK4076 -  Syntace Axle 148xM12 x 1.0mm









Sliding Dropouts







TSS1 Steel Plate Dropouts (Pair). Eyelet M6 Angle
TSS9 As above but stainless

Sliders attached with M8 Stainless Bolts Supplied		 TSS7 Stainless Steel Version available with Kick Stand Mount.

Sliders attached with M8 Stainless Bolts Supplied








TSS2 Right Aluminium Slider (suitable for Rohloff)
TSS8 Left Side Version


 		 TSS3 Left Aluminium Slider for Rohloff. Disc Mount




















TSS4 Left Aluminium Slider for Rohloff.                 TSS5 Left Aluminium Slider. With Disc Mount      TSS6 Right Aluminium Slider. With Gear Hanger
