ALTEC2/ALTEC2 PLUS

Material

Technical Characteristics

  • Lightness
  • Excellent weldability
  • Heat treatment is firmly recommended after welding (artificial aging treatment: 6h. at 90 C, then 4 hours at 150 C.)
  • Integrated Head Tube Option

Reasons to choose Altec2/Altec2 Plus

  • Athlete: Altec2/Altec2 Plus offers extreme lightness, together with the widest tube range. This allows the manufacturer to make the right frame for any specific use.
  • Framebuilder: The mechanical characteristics of this light aluminium alloy are enhanced by heat treatment after welding. Maximum values of mechanical resistance and fatigue life can be obtained. Altec2  tubes are reliable and long lasting if properly assembled following Columbus advice (A special booklet is available for correct assembly of Altec2 Plus). Altec2 offers different megatube shapes to customize the frame geometry.

Suggested Sets

Altec2 Road Frame
Code

Tube
TT AT7L12 a 35, L=600
Available from stock as E shaped Megatube
(AT7L12...112E listed below)		 165 g
DT AT7H12OV a 50/35, L=670 250 g at7h12ov.jpg (5730 bytes)
ST AT7M13...001 a 31.7, L=635 200 g at7m13...001.jpg (5399 bytes)
CS AT7814OV a 31.5/18, L=420 92 g at7814ov.jpg (5214 bytes)
SS AT7915...001 a 19, L=560, 1.0
Also Available from stock in S bend		 72 g at7915...001.jpg (3737 bytes)
HT AT7H18 a 35, L=180, 3 100 g at7h18.jpg (2618 bytes)
Weight of 8 tube 54cm centre to centre road frame = 1050 g



Altec2 Time Trial Frame
Code

Tube
TT AT7L12..Oval a 40/30, 600 165 g
DT AT7B12...002 a 66/30, L=670 265 g at7b12...002.jpg (5727 bytes)
ST ALTB12.../236G a 66/30, L=670
Foil and new seat post clamping set also available		 330 g
CS AT7814OV a 31.5/18, L=420
Also stock Dedacciai Krono Aero Chain stays		 92 g at7814ov.jpg (5214 bytes)
SS AT7915...001..Oval a 21/16 oval, L=560, 1.0
Also Stock Dedacciai Krono Deep Oval Seat stays. 		72 g
HT AT7H18 a 35, L=180, 3 100 g at7h18.jpg (2165 bytes)
Weight of 8 tube time trial frame 54 cm centre to centre = 1122 g



Altec 2 Plus Road Frame
Code

Tube
TT ATPS11600...112E a 40/30 Megatube, L=600
 132 g

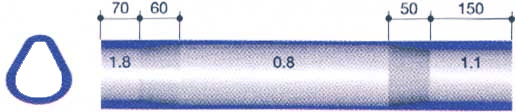

DT ATPY12670...112U r 45/35 Megatube, L=670 206 g
ST ATPM13635...001 a 31.7, L=635 171 g
CS AT7814OV a 31.5/18, L=420 92 g at7814ov.jpg (5214 bytes)
SS AT7915...001 a 19, L=560, 1.0 72 g at7915...001.jpg (3737 bytes)
HT ZV7STR a Ø45
L=115, 145, 175, 205
2.5		 120 g
Weight of 8 tube 54cm centre to centre road frame = 965 g



Other Altec2 tubes available.
Code

Tube
TT AT7L12...112E a 40/30, 600 165 g xauh11...001.jpg (4437 bytes)
HT AT7C18 a 41, L=180, 4 160 g at7h18.jpg (2618 bytes)
HT ZV7STR a Ø45
L=115, 145, 175, 205
2.5		 120 g
